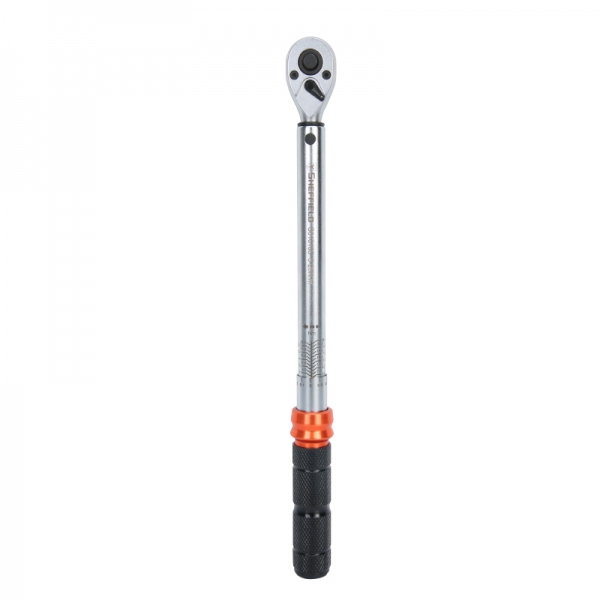

Metal Handle Torque Wrench
To ensure product accuracy and service life, please adjust the torque to the minimum value after use
High-quality steel forging, strong and durable

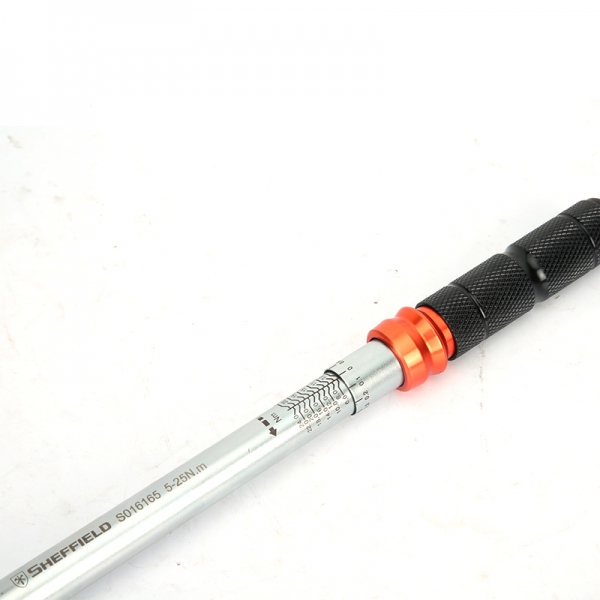

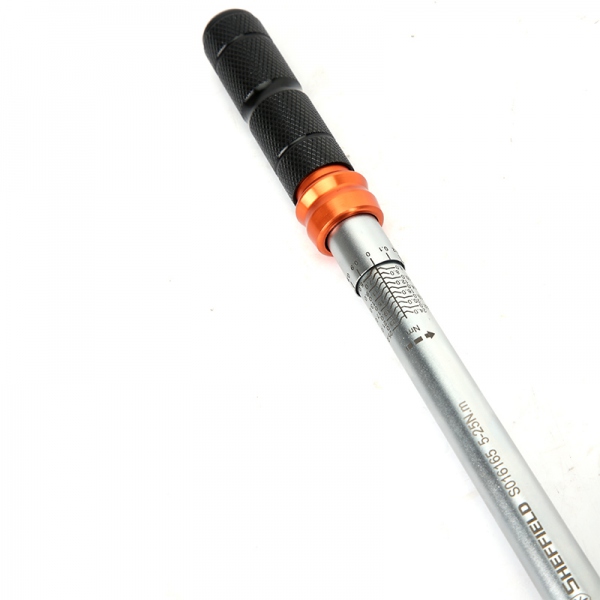

Aluminum alloy knurled handle, oil-resistant non-slip, secure grip
Ratchet is made of high quality Cr-Mo material, heat treated
48-teeth dual way adjustable ratchet. Suitable for narrow spaces
Accuracy ±3%, better than international standards(10 N.m or lower:±5%)
Torque can be set within the torque range
| Item No. | Specification(mm) | L(mm) | N.W(kg) | N.m | Qty/CTN |
|---|---|---|---|---|---|
| S016165 | 1/4" | 308 | 0.39 | 5-25 | 1 |
| S016166 | 3/8" | 308 | 0.39 | 5-25 | 1 |
| S016167 | 3/8" | 389 | 0.94 | 10-50 | 1 |
| S016168 | 3/8" | 457 | 1.04 | 20-100 | 1 |
| S016169 | 1/2" | 457 | 1.16 | 20-100 | 1 |
| S016170 | 1/2" | 506 | 1.28 | 40-200 | 1 |
| S016171 | 1/2" | 569 | 1.38 | 60-340 | 1 |
| S016172 | 3/4" | 569 | 1.42 | 60-340 | 1 |
| S016190 | 1/4" | 231 | 0.30 | 1-5 | 1 |
