Split-type Digital Torque Tester (Color Screen Version)
• Accuracy: ±0.5% (within 10%-100% of full load)
• 7-inch color touchscreen
• Languages: Switchable between Chinese and English
• Eight torque units switchable:
N.m, cN.m, kgm, ckgm, gm, Lb.ft, Lb.in, Oz.in
• Three test modes selectable: First peak, peak, and tracking mode
• Three interfaces selectable: Conventional, preset, and waveform
• During wrench testing, 15 test data points are automatically recorded
• Can store 8,000 data points; can preset 100 groups of parameters
• Automatically zeros during continuous testing; overload alarm prompt
• With USB port for data export via USB drive
• External on/off switch for the meter; embedded feet on the back, display can be placed at an angle
High-precision sensor, suitable for inspection or calibration of torque wrenches in inspection departments

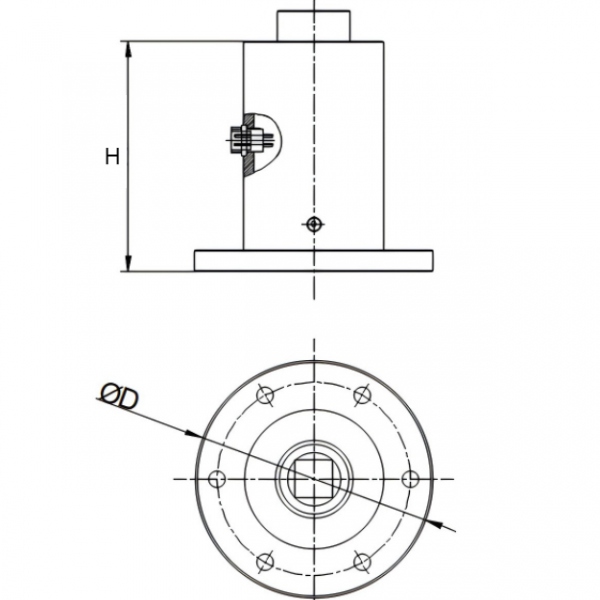

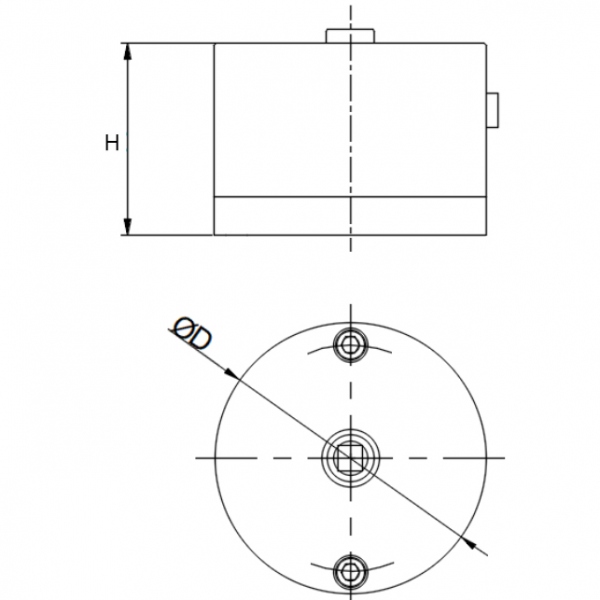

| Item No. | H(mm) | Specification | Weight(kg) | Qty/CTN |
|---|---|---|---|---|
| S016750 | 72 | 1/4" | 2.10 | 1 |
| S016751 | 72 | 3/8" | 2.30 | 1 |
| S016752 | 72 | 3/8" | 2.33 | 1 |
| S016753 | 72 | 3/8" | 2.37 | 1 |
| S016754 | 77 | 1/2" | 2.44 | 1 |
| S016755 | 77 | 1/2" | 2.52 | 1 |
| S016756 | 77 | 1/2" | 2.52 | 1 |
| S016757 | 116 | 3/4" | 2.54 | 1 |
| S016758 | 128 | 3/4" | 2.73 | 1 |
