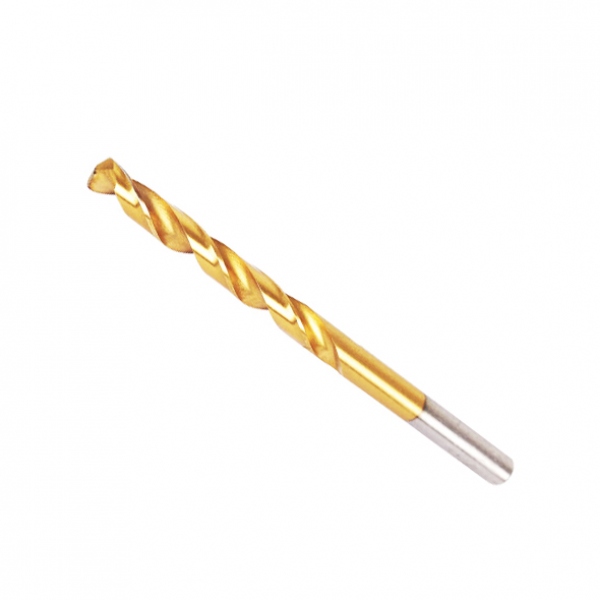

公制镀钛高速钢直柄麻花钻

HSS 6542高速钢材质，全磨制工艺加工，确保切削硬度及速度

刃口采用135度双后角工艺加工，保证定位准确

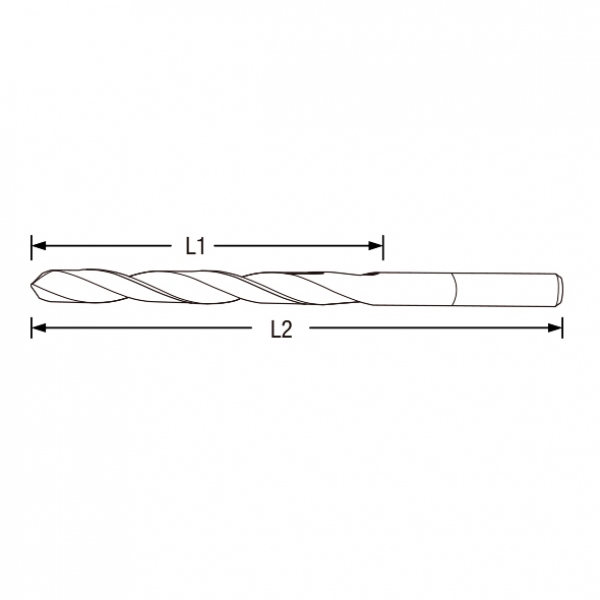

货号	规格(mm)	L1	L2	包装数量

S136001	1	12	34	10
S136002	1.5	18	40	10
S136003	2	24	49	10
S136004	2.2	27	53	10
S136005	2.5	30	57	10
S136006	2.8	33	61	10
S136007	3	33	61	10
S136008	3.2	36	65	10
S136009	3.5	39	70	10
S136010	3.8	43	75	10
S136011	4	43	75	10
S136012	4.2	43	75	10
S136013	4.5	47	80	10
S136014	4.8	52	86	10
S136015	5	52	86	10
S136016	5.2	52	86	10
S136017	5.5	57	93	10
S136018	5.8	57	93	10
S136019	6	57	93	10
S136020	6.2	63	101	10
S136021	6.5	63	101	10
S136022	6.8	69	109	10
S136023	7	69	109	10
S136024	7.5	69	109	10
S136025	8	75	117	10
S136026	8.5	75	117	10
S136027	9	81	125	5
S136028	9.5	81	125	5
S136029	10	87	133	5
S136030	10.2	87	133	5
S136031	10.5	87	133	5
S136032	11	94	142	5
S136033	11.5	94	142	5
S136034	12	101	151	5
S136035	12.5	101	151	5
S136036	13	101	151	5
S136037	8.2	75	117	10
S136040	14	108	160	1
S136060	16	120	178	1
S136080	18	130	191	1
S136111	1.1	14	36	10
S136112	1.2	16	38	10
S136113	1.3	16	38	10
S136114	1.4	18	40	10
S136116	1.6	20	43	10
S136117	1.7	20	43	10
S136118	1.8	22	46	10
S136119	1.9	22	46	10
S136121	2.1	24	49	10
S136123	2.3	27	53	10
S136124	2.4	30	57	10
S136126	2.6	30	57	10
S136127	2.7	33	61	10
S136129	2.9	33	61	10
S136131	3.1	36	65	10
S136133	3.3	36	65	10
S136134	3.4	39	70	10
S136136	3.6	39	70	10
S136137	3.7	39	70	10
S136139	3.9	43	75	10
S136141	4.1	43	75	10
S136143	4.3	47	80	10
S136144	4.4	47	80	10
S136146	4.6	47	80	10
S136147	4.7	47	80	10
S136149	4.9	52	86	10
S136151	5.1	52	86	10
S136153	5.3	52	86	10
S136154	5.4	57	93	10
S136156	5.6	57	93	10
S136157	5.7	57	93	10
S136159	5.9	57	93	10
S136161	6.1	63	101	10
S136163	6.3	63	101	10
S136164	6.4	63	101	10
S136166	6.6	63	101	10
S136167	6.7	63	101	10
S136169	6.9	69	109	10
S136171	7.1	69	109	10
S136172	7.2	69	109	10
S136173	7.3	69	109	10
S136174	7.4	69	109	10
S136176	7.6	75	117	10
S136177	7.7	75	117	10
S136178	7.8	75	117	10
S136179	7.9	75	117	10
S136181	8.1	75	117	10
S136183	8.3	75	117	10
S136184	8.4	75	117	10
S136186	8.6	81	125	5
S136187	8.7	81	125	5
S136188	8.8	81	125	5
S136189	8.9	81	125	5
S136191	9.1	81	125	5
S136192	9.2	81	125	5
S136193	9.3	81	125	5
S136194	9.4	81	125	5
S136196	9.6	87	133	5
S136197	9.7	87	133	5
S136198	9.8	87	133	5
S136199	9.9	87	133	5
S136201	10.1	87	133	5
S136203	10.3	87	133	5
S136204	10.4	87	133	5
S136206	10.6	87	133	5
S136207	10.7	94	142	5
S136208	10.8	94	142	5
S136209	10.9	94	142	5
S136211	11.1	94	142	5
S136212	11.2	94	142	5
S136213	11.3	94	142	5
S136214	11.4	94	142	5
S136216	11.6	94	142	5
S136217	11.7	94	142	5
S136218	11.8	94	142	5
S136219	11.9	101	151	5
S136220	20	140	205	1
S136221	12.1	101	151	5
S136222	12.2	101	151	5
S136223	12.3	101	151	5
S136224	12.4	101	151	5
S136226	12.6	101	151	5
S136227	12.7	101	51	5
S136228	12.8	101	151	5
S136229	12.9	101	151	5
