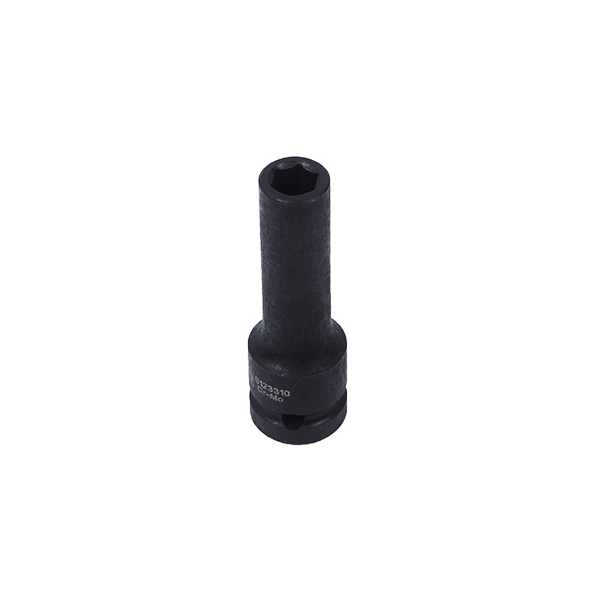

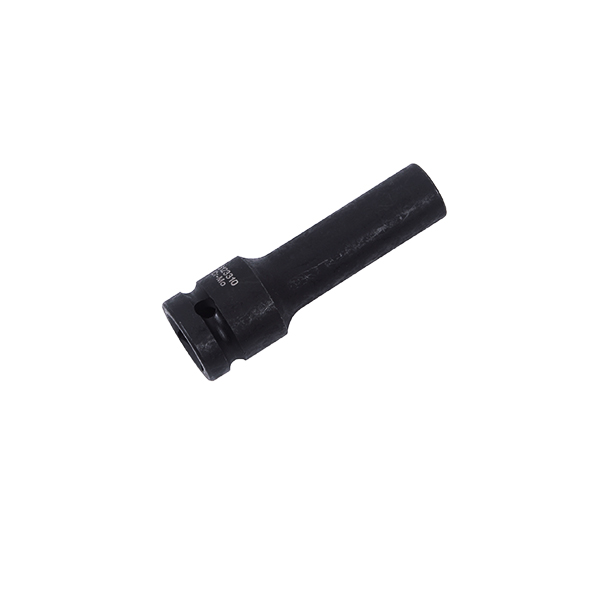

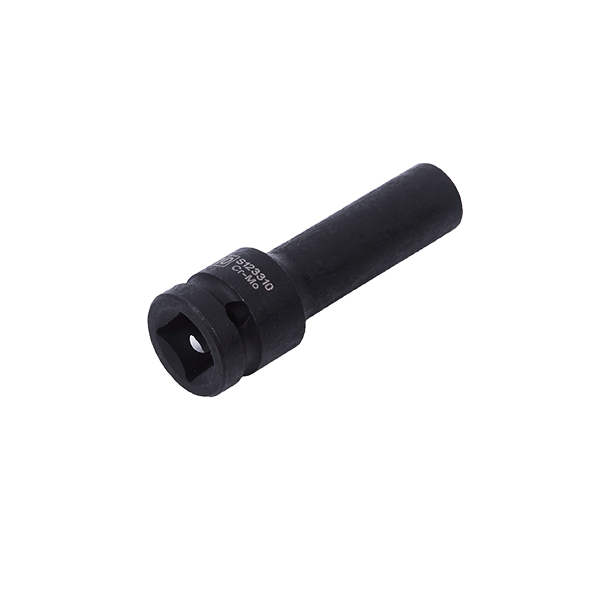

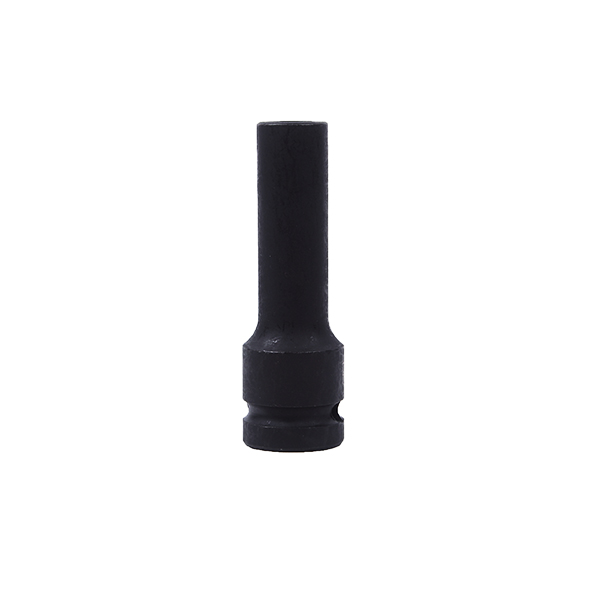

1/2”系列六角气动长套筒
采用CR-MO材质，整体冷锻加工制造
表面磷酸锰处理，耐腐蚀

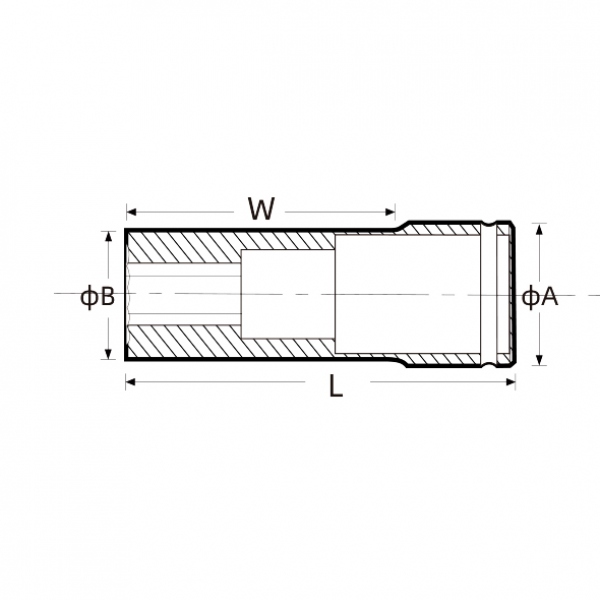

| 货号 | 规格(mm) | W(mm) | ∅A(mm) | ∅B(mm) | L1 | 包装数量 |
|---|
| S123310 | 10 | 54 | 23.8 | 17 | 78 | 12 |
| S123311 | 11 | 54 | 23.8 | 18 | 78 | 12 |
| S123312 | 12 | 54 | 23.8 | 19 | 78 | 12 |
| S123313 | 13 | 54 | 23.8 | 20 | 78 | 12 |
| S123314 | 14 | 54 | 23.8 | 22 | 78 | 12 |
| S123315 | 15 | 54 | 23.8 | 23 | 78 | 12 |
| S123316 | 16 | 54 | 23.8 | 23 | 78 | 12 |
| S123317 | 17 | 54 | 25.8 | 23 | 78 | 12 |
| S123318 | 18 | 54 | 25.8 | 23 | 78 | 12 |
| S123319 | 19 | 54 | 27.8 | 23 | 78 | 12 |
| S123321 | 21 | 54 | 29.8 | 23 | 78 | 12 |
| S123322 | 22 | 14 | 30 | 31.8 | 78 | 12 |
| S123324 | 24 | 14 | 30 | 33.8 | 78 | 12 |
| S123327 | 27 | 14 | 30 | 37.8 | 78 | 12 |
| S123330 | 30 | 12 | 30 | 41.8 | 78 | 12 |
| S123332 | 32 | 12 | 30 | 43.8 | 78 | 12 |
