方头开口插件
此产品为非常规库存产品，需要一定的交期
铬钒钢材质, 坚固耐用
精密加工处理, 保证配合精度

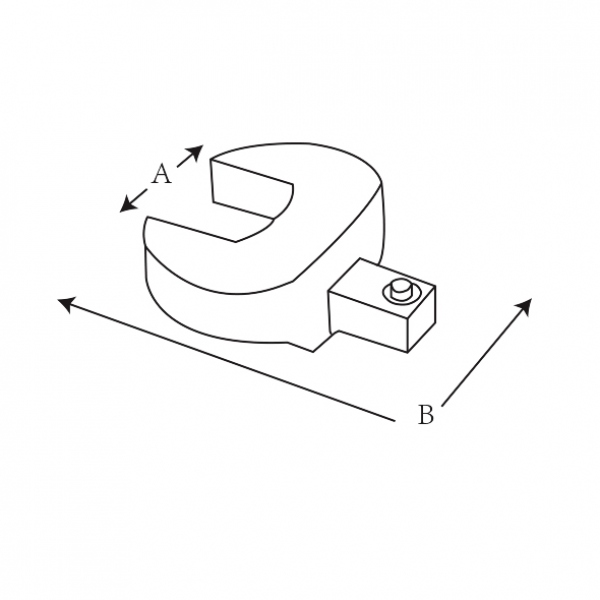

| 货号 | 规格A | 规格B | N.m | 包装数量 |
|---|
| S016506 | 6mm | 9x12mm | 6 | 1 |
| S016507 | 7mm | 9x12mm | 9 | 1 |
| S016508 | 8mm | 9x12mm | 13 | 1 |
| S016509 | 9mm | 9x12mm | 18 | 1 |
| S016510 | 10mm | 9x12mm | 24 | 1 |
| S016511 | 11mm | 9x12mm | 32 | 1 |
| S016512 | 12mm | 9x12mm | 41 | 1 |
| S016513 | 13mm | 9x12mm | 51 | 1 |
| S016514 | 14mm | 9x12mm | 63 | 1 |
| S016515 | 15mm | 9x12mm | 77 | 1 |
| S016516 | 16mm | 9x12mm | 92 | 1 |
| S016517 | 17mm | 9x12mm | 109 | 1 |
| S016518 | 18mm | 9x12mm | 125 | 1 |
| S016519 | 19mm | 9x12mm | 145 | 1 |
| S016520 | 20mm | 9x12mm | 160 | 1 |
| S016521 | 21mm | 9x12mm | 160 | 1 |
| S016522 | 22mm | 9x12mm | 160 | 1 |
| S016523 | 23mm | 9x12mm | 160 | 1 |
| S016524 | 24mm | 9x12mm | 160 | 1 |
| S016526 | 27mm | 9x12mm | 160 | 1 |
| S016527 | 28mm | 9x12mm | 160 | 1 |
| S016528 | 32mm | 9x12mm | 160 | 1 |
| S016535 | 19mm | 14x18mm | 145 | 1 |
| S016536 | 21mm | 14x18mm | 190 | 1 |
| S016537 | 22mm | 14x18mm | 220 | 1 |
| S016538 | 24mm | 14x18mm | 280 | 1 |
| S016539 | 25mm | 14x18mm | 320 | 1 |
| S016540 | 27mm | 14x18mm | 360 | 1 |
| S016541 | 30mm | 14x18mm | 360 | 1 |
| S016542 | 32mm | 14x18mm | 360 | 1 |
| S016543 | 34mm | 14x18mm | 360 | 1 |
| S016544 | 36mm | 14x18mm | 360 | 1 |
| S016545 | 41mm | 14x18mm | 360 | 1 |
| S016546 | 46mm | 14x18mm | 360 | 1 |
| S016547 | 50mm | 14x18mm | 360 | 1 |
| S016550 | 30mm | 24x32mm | 1200 | 1 |
| S016551 | 32mm | 24x32mm | 1200 | 1 |
| S016552 | 34mm | 24x32mm | 1200 | 1 |
| S016553 | 36mm | 24x32mm | 1200 | 1 |
| S016554 | 41mm | 24x32mm | 1200 | 1 |
| S016555 | 46mm | 24x32mm | 1200 | 1 |
| S016556 | 50mm | 24x32mm | 1200 | 1 |
| S016557 | 55mm | 24x32mm | 1200 | 1 |
| S016563 | 25mm | 9x12mm | 160 | 1 |
| S016564 | 30mm | 9x12mm | 160 | 1 |
| S016565 | 36mm | 9x12mm | 160 | 1 |
| S016566 | 41mm | 9x12mm | 160 | 1 |
| S016567 | 8mm | 14x18mm | 13 | 1 |
| S016568 | 9mm | 14x18mm | 18 | 1 |
| S016569 | 10mm | 14x18mm | 24 | 1 |
| S016570 | 11mm | 14x18mm | 32 | 1 |
| S016571 | 12mm | 14x18mm | 41 | 1 |
| S016572 | 13mm | 14x18mm | 51 | 1 |
| S016573 | 14mm | 14x18mm | 63 | 1 |
| S016574 | 15mm | 14x18mm | 77 | 1 |
| S016575 | 16mm | 14x18mm | 92 | 1 |
| S016576 | 17mm | 14x18mm | 109 | 1 |
| S016577 | 18mm | 14x18mm | 125 | 1 |
| S016578 | 20mm | 14x18mm | 160 | 1 |
| S016579 | 23mm | 14x18mm | 250 | 1 |
| S016580 | 26mm | 14x18mm | 360 | 1 |
| S016581 | 28mm | 14x18mm | 360 | 1 |
| S016582 | 29mm | 14x18mm | 360 | 1 |
| S016583 | 38mm | 14x18mm | 360 | 1 |
| S016584 | 39mm | 14x18mm | 360 | 1 |
| S016585 | 45mm | 14x18mm | 360 | 1 |
| S016586 | 49mm | 14x18mm | 360 | 1 |
| S016587 | 51mm | 14x18mm | 360 | 1 |
| S016588 | 52mm | 14x18mm | 360 | 1 |
| S016589 | 55mm | 14x18mm | 360 | 1 |
| S016590 | 57mm | 14x18mm | 360 | 1 |
| S016591 | 60mm | 14x18mm | 360 | 1 |
| S016592 | 61mm | 14x18mm | 360 | 1 |
| S016593 | 65mm | 14x18mm | 360 | 1 |
| S016594 | 68mm | 14x18mm | 360 | 1 |
| S016595 | 70mm | 14x18mm | 360 | 1 |
| S016596 | 72mm | 14x18mm | 360 | 1 |
| S016597 | 75mm | 14x18mm | 360 | 1 |
| S016598 | 90mm | 14x18mm | 360 | 1 |
| S016599 | 19mm | 24x32mm | 1200 | 1 |
| S016600 | 22mm | 24x32mm | 1200 | 1 |
| S016601 | 24mm | 24x32mm | 1200 | 1 |
| S016602 | 27mm | 24x32mm | 1200 | 1 |
| S016603 | 28mm | 24x32mm | 1200 | 1 |
| S016605 | 45mm | 24x32mm | 1200 | 1 |
| S016607 | 65mm | 24x32mm | 1200 | 1 |
| S016611 | 38mm | 24x32mm | 1200 | 1 |
| S016613 | 60mm | 24x32mm | 1200 | 1 |
